KEY FEATURES
- Compact and Cost-Effective: Designed for pole-mounted installations, ideal for minimal infrastructure investment.
- Wide Application: Suitable for agricultural, rural, urban lighting, and railway power
- Advanced Design: Energy-efficient rolled-core structure with excellent overload capability and ease of maintenance.
- Superior Performance: Features low-loss design, minimal noise, low-temperature rise, robust overload capability, and short-circuit resistance

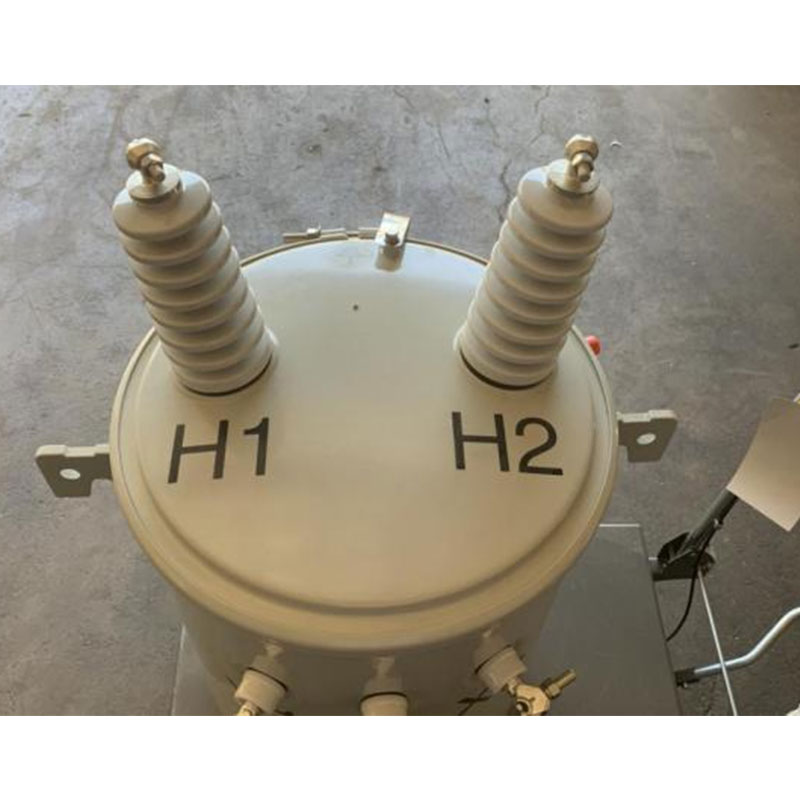

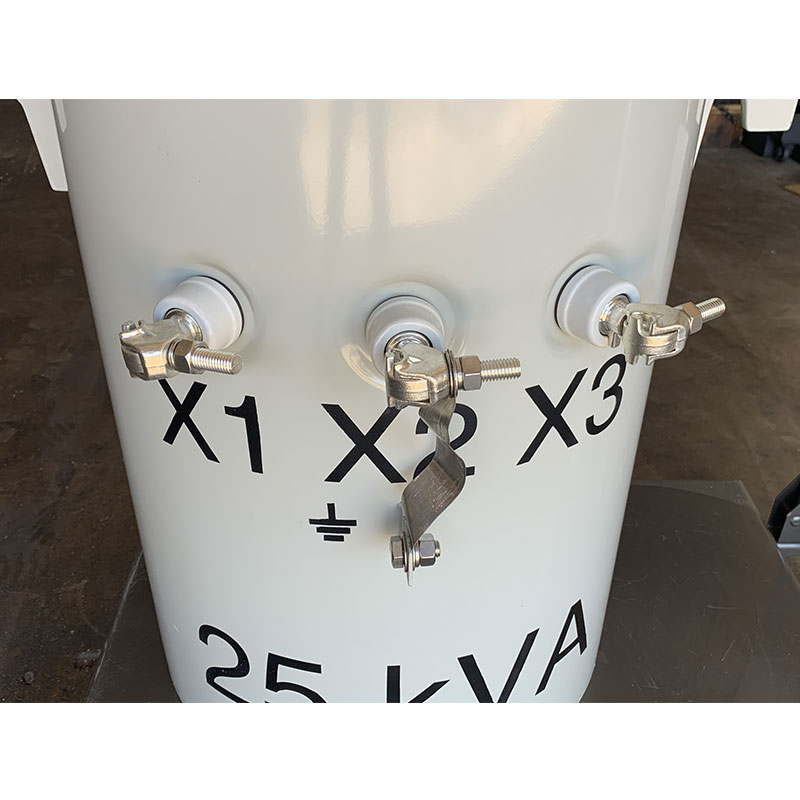

- Typical Connections:Porcelain Bushing, Top-mounted for High Voltage, and Side-mounted for Low Voltage
- Standards Compliance: Meets NEMA, ANSI C57.12, and UL standards, and DOE 2016 efficiency requirements.

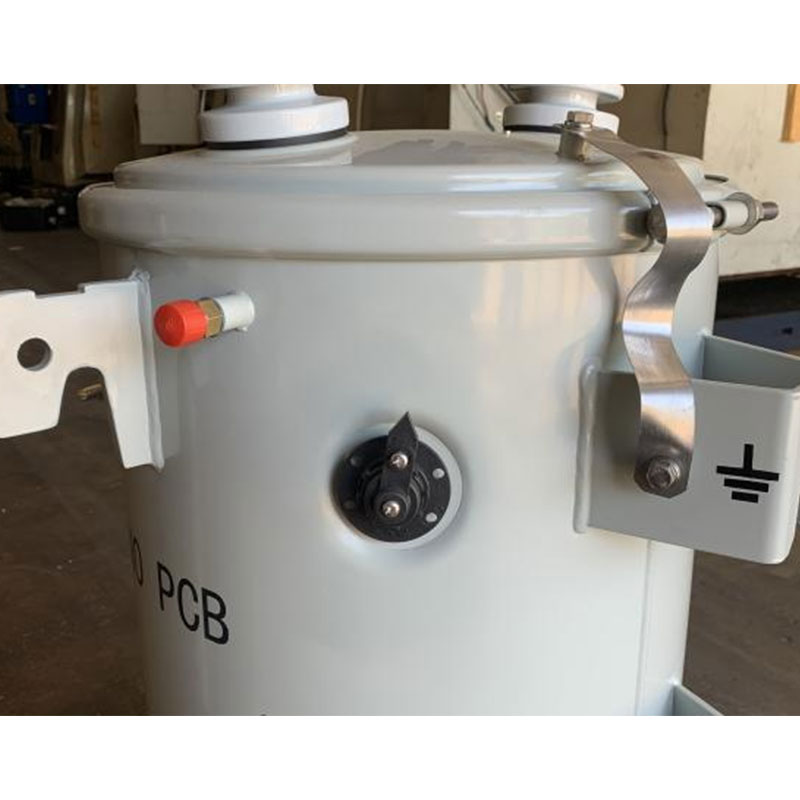

- Physical Features: Lifting lugs, bolted GND terminals, automatic relief, and anti-corrosion surface finish
- Customizable Input/Output: Meets diverse high-voltage and low-voltage specifications with custom options
GENERAL SPECIFICATIONS
| Rated Power (kVA) | High Voltage(V) | Low Voltage(V) | Loss (W) | Dimension(mm) | Weight(kg) | ||||
| No-load Loss(W) | Load Loss(W) | W | D | H | Oil Weight | Total Weight | |||
| 10 |
19920 14400 7970 7620 7200 4160 2400 or others |
120-240
240-480
277
347
or others
|
36 | 120 | 500 | 525 | 885 | 22 | 150 |
| 15 | 50 | 195 | 520 | 565 | 905 | 30 | 210 | ||
| 25 | 80 | 290 | 560 | 590 | 935 | 45 | 258 | ||
| 37.5 | 105 | 360 | 610 | 625 | 935 | 50 | 340 | ||
| 50 | 135 | 500 | 635 | 675 | 1035 | 62 | 395 | ||
| 75 | 190 | 650 | 745 | 840 | 1035 | 88 | 480 | ||
| 100 | 210 | 850 | 770 | 965 | 1135 | 94 | 530 | ||
| 167 | 350 | 1410 | 795 | 890 | 1335 | 138 | 680 | ||
