Product Details

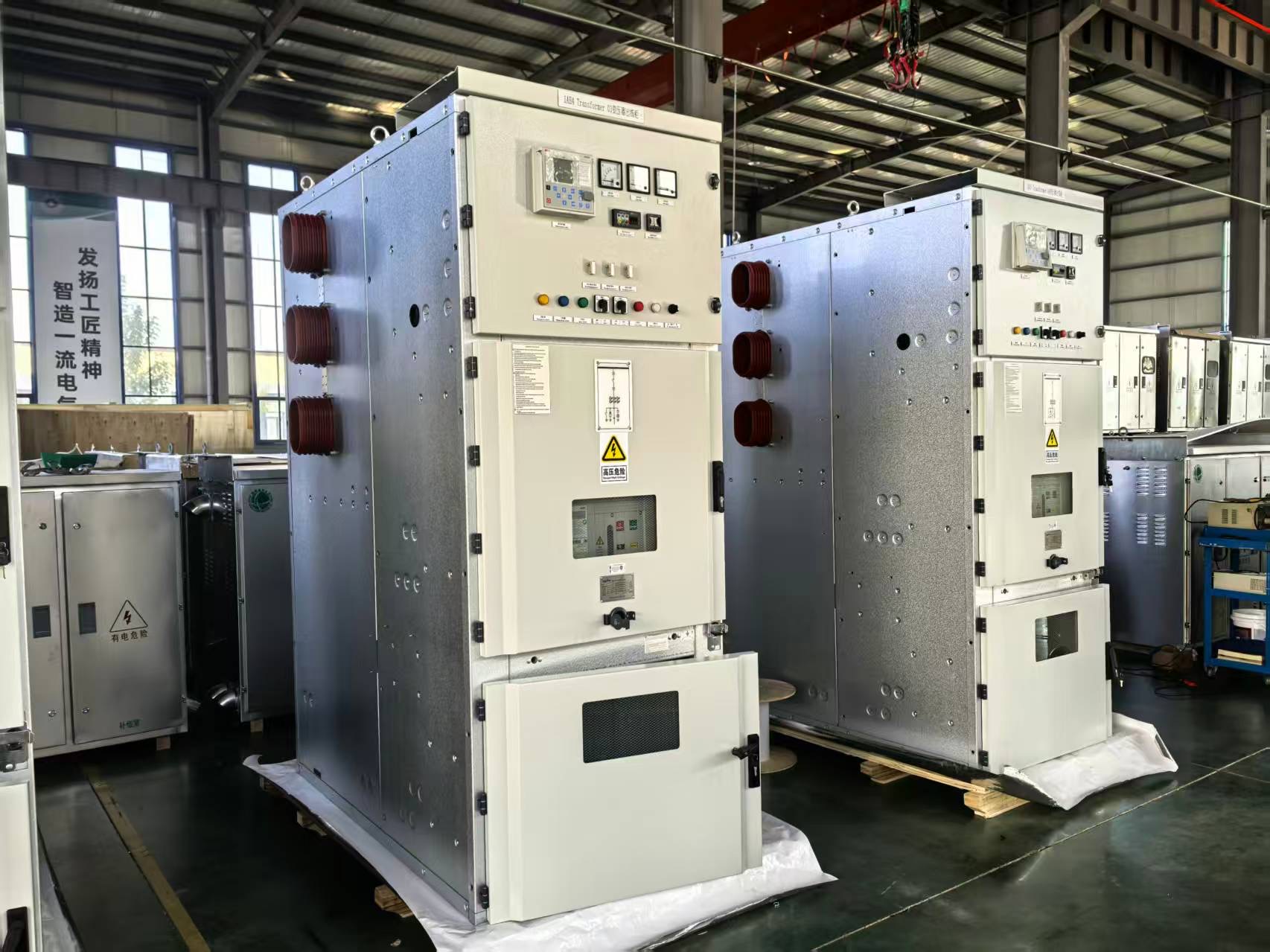

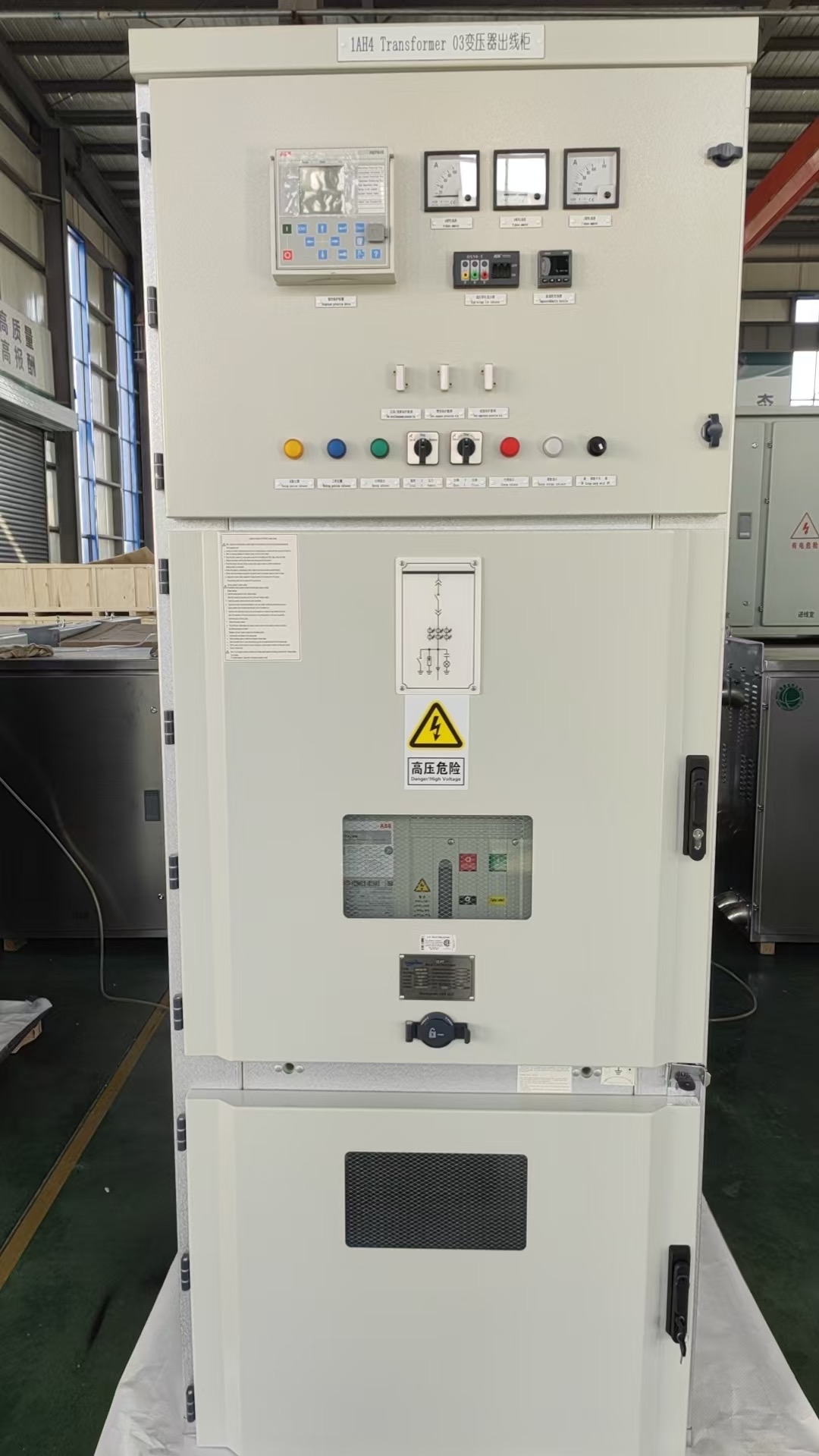

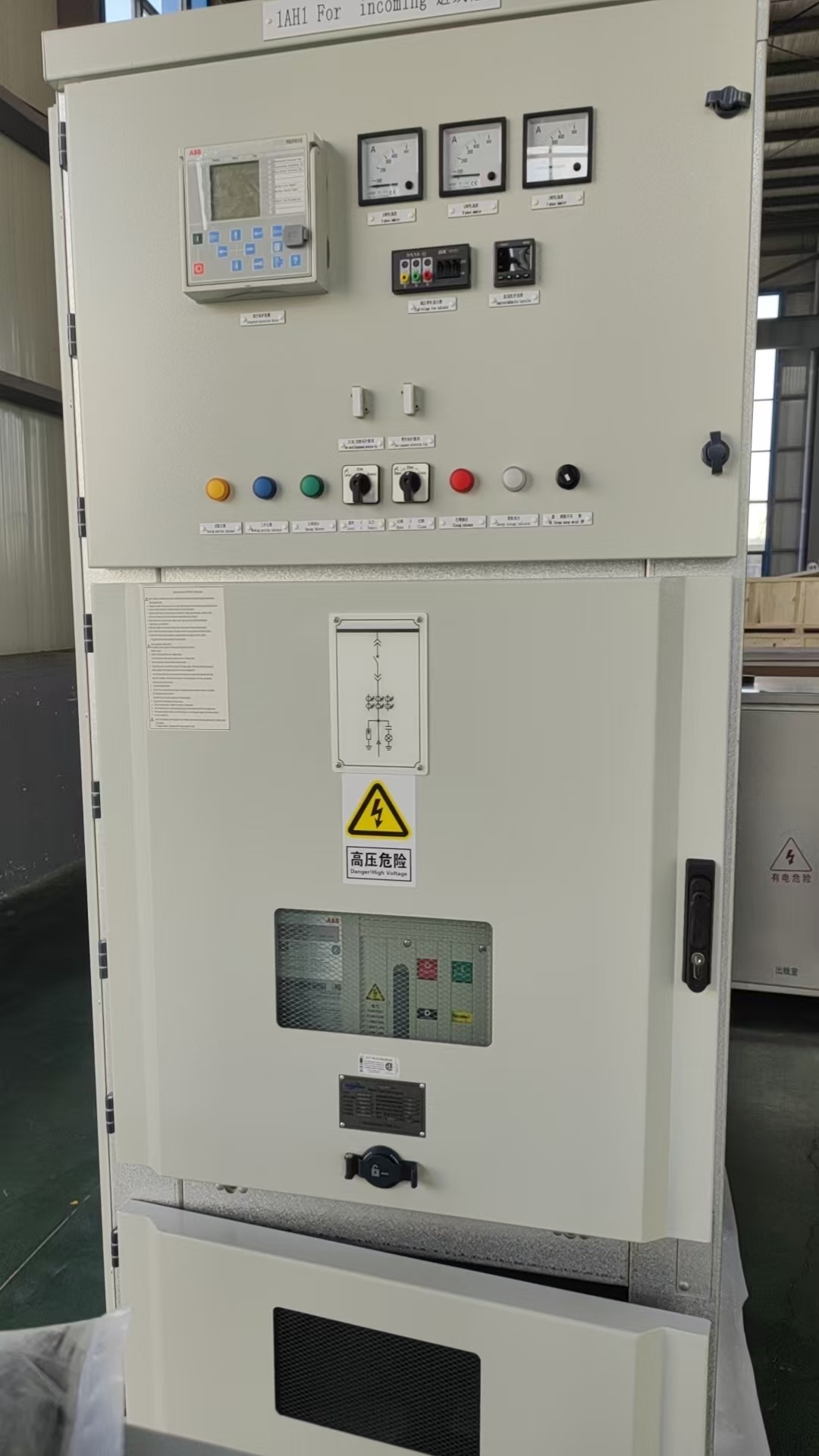

This metal-clad vacuum switchgear with VCP-W breakers is designed for high performance and safety. Built to comply with ANSI, NEMA, and IEEE standards, it features arc-resistant models to ensure protection during fault conditions. Its modular design allows for flexible configurations, accommodating a variety of breaker arrangements and auxiliary compartments. Maintenance is straightforward with front-accessible mechanisms, vacuum interrupters that reduce maintenance needs, and integrated wear indicators for tracking contact erosion.
Product Features
High Standards: Built to ANSI, NEMA, and IEEE specifications for durability and reliability.
Arc-Resistant Design: Enhanced safety during fault scenarios.
Modular Flexibility: Single-high or two-high breaker layouts and customizable auxiliary compartments.
Simplified Maintenance: Front-access mechanisms and enclosed vacuum interrupters with wear indicators for contact monitoring.
Specifications
- Voltage Ratings:Maximum voltages: 4.76 kV, 8.25 kV, 15 kV, 27 kV, 38 kV.
- Current Ratings:600A to 4000A.
- Interrupting Capacities:16 kA to 63 kA.
- Bus Ratings:1200A to 4000A for 5 kV and 15 kV systems.Up to 3000A for 38 kV systems.
- BIL (Basic Insulation Level):60 kV for 5 kV systems.170 kV for 38 kV systems.
